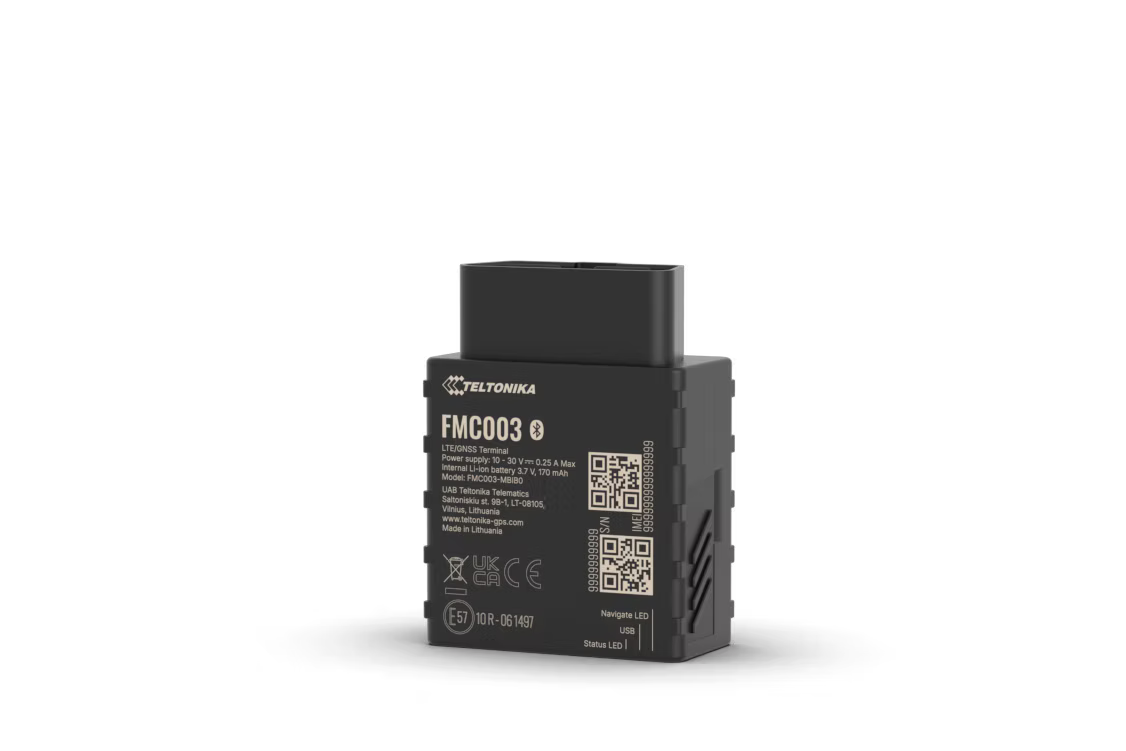

Teltonika FMC003 OBD Tracker

The Teltonika FMC003 pulls real fuel level and odometer readings straight from the vehicle's ECU. So you get not estimates, not approximations. What the vehicle knows, you know.

What you get:

• Plug-and-play OBD install
• Real fuel level and odometer data direct from the ECU
• Reads up to 32 OEM parameters depending on make and model
• Live 4G tracking with 2G fallback
• Jamming detection with alerts
• Crash detection via accelerometer
• Backup battery if the OBD connection is disrupted
• Operates in all conditions (-40°C to +85°C)

Built for fleet management, driver logbooks, insurance telematics, connected car applications, and rental and leasing fleets.

Your Package Will Contain:

• 1 FMC003 tracker


Product Specifications

• MODULE
  Name: MeiG SLM320-L16A / MeiG SLM320-PE2C / Teltonika TM2500
  Technology: LTE Cat 1 / 2G (GSM/GPRS) / GNSS / Bluetooth


• GNSS
  Systems: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
  Receiver channels: 33
  Accuracy: <3 m
  Tracking sensitivity: -165 dBm
  Hot start: <1 s | Warm start: <25 s | Cold start: <35 s


• CELLULAR
  Technology: LTE Cat 1, GSM
  4G bands (SLM320-PE2C): LTE FDD B1/B3/B7/B8/B20/B28, LTE TDD B38/B40/B41
  2G bands: GSM B2/B3/B5/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS (text/data)


• POWER
  Input voltage: 10–30V DC with overvoltage protection
  Backup battery: 170mAh Li-Ion, 3.7V (0.63Wh)
  Power consumption: <3mA (Ultra Deep Sleep) / <33mA (nominal)


• PHYSICAL
  Dimensions: 67.2 x 49.6 x 25 mm
  Connection: OBDII socket (plug-and-play)


• OPERATING ENVIRONMENT
  Operating temperature (without battery): -40°C to +85°C
  Storage temperature: -40°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP41
  Battery charge temperature: +10°C to +45°C
  Battery discharge temperature: -20°C to +60°C


• INTERFACE
  Connection: OBDII socket
  OBD data bus: HS CAN, MS CAN, SW CAN, K-line
  OBD data reading: OEM fuel level, odometer and up to 32 vehicle onboard parameters
  Supported OBD protocols: ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, ISO 14229 (UDS), J2819 (VW TP2.0)
  USB: Micro-USB 2.0
  SIM: Micro-SIM
  Bluetooth: 4.0 + LE
  LED indicators: 2


• FEATURES
  Sensors: Accelerometer
  Scenarios: Green driving, over-speeding, jamming detection, excessive idling, towing detection, crash detection, auto/manual geofence, trip, unplug detection
  Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  Fuel monitoring: OBDII, OEM fuel level
  Ignition detection: Accelerometer, external power voltage, engine RPM
  Configuration: FOTA Web, Teltonika Configurator (USB/Bluetooth), FMBT mobile app, SMS, GPRS
  Time sync: GPS, NITZ, NTP
  BLE peripherals: Temperature/humidity sensor, barcode scanner, universal BLE sensors


• CERTIFICATIONS
  CE RED, E-Mark, RCM, KC, NCC
