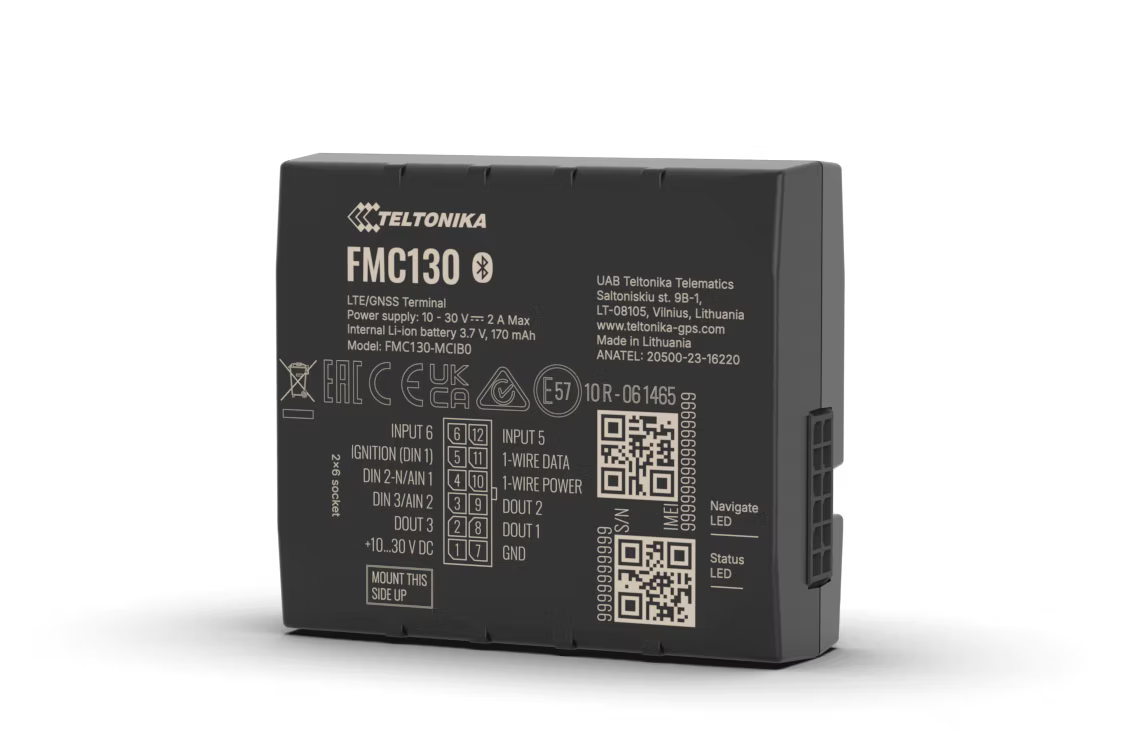

Teltonika FMC130 Advanced Tracker With 4G LTE Connection

Know exactly where your vehicles are, what they're doing, and whether they're being used as they should be. The Teltonika FMC130 gives fleet operators real-time visibility without the guesswork.

What you get:

• Live 4G tracking with automatic 3G/2G fallback
• Fuel monitoring to catch waste and theft before it costs you
• Remote engine immobilisation
• Tamper-proof backup battery keeps tracking even if someone tries to disconnect it
• Door sensors, seatbelt detection, and flexible I/O inputs for your setup
• Engine diagnostics: odometer, RPM, coolant temperature
• Operates in all UK conditions (-40°C to +85°C)

Built for taxi fleets, PCO operators, car rental companies, and dealerships.

Your Package Will Contain:

• 1 FMC130 tracker
• 1 input/output power supply cable (0.9m)

Product Specifications

• MODULE
  Name: Quectel EC21-AU / EC21-EC / Teltonika TM2500
  Technology: LTE Cat 1 / 3G (UMTS/HSPA) / 2G (GSM/GPRS) / GNSS / Bluetooth
• GNSS
  Systems: GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS
  Receiver channels: 33
  Accuracy: <3 m
  Tracking sensitivity: -165 dBm
  Hot start: <1 s | Warm start: <25 s | Cold start: <35 s
• CELLULAR
  Technology: LTE Cat 1, UMTS, GSM
  4G bands (EC21-EC): LTE FDD B1/B3/B7/B8/B20/B28A
  3G bands (EC21-EC): WCDMA B1/B8
  2G bands (EC21-EC): GSM B3/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS (text/data)
• POWER
  Input voltage: 10–30V DC with overvoltage protection
  Backup battery: 170mAh Li-Ion, 3.7V (0.63Wh)
• PHYSICAL
  Dimensions: 65 x 56.6 x 20.6 mm
  Weight: 55 g
• OPERATING ENVIRONMENT
  Operating temperature (without battery): -40°C to +85°C
  Storage temperature: -40°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP41
  Battery charge temperature: 0°C to +45°C
  Battery discharge temperature: -20°C to +60°C
• INTERFACE
  Digital inputs: 3
  Digital outputs: 3
  Negative input: 1 (DIN2)
  Impulse inputs: 2 (DIN1, DIN2)
  Analog inputs: 2
  CAN adapter input: 1
  1-Wire: 1
  USB: Micro-USB 2.0
  SIM: Micro-SIM + eSIM
  Memory: 128MB internal flash
  Bluetooth: 4.0 + LE
  LED indicators: 2
• FEATURES
  Sensors: Accelerometer
  Scenarios: Green driving, over-speeding, excessive idling, immobiliser, towing detection, crash detection, auto/manual geofence, trip, unplug detection
  Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
  Ignition detection: Digital Input 1, accelerometer, external power voltage, engine RPM (via CAN/OBDII)
  Configuration: FOTA Web, Teltonika Configurator (USB/Bluetooth), SMS, GPRS
  Time sync: GNSS, NITZ, NTP
  BLE peripherals: Temperature/humidity sensor, OBDII dongle, barcode scanner, universal BLE sensors
