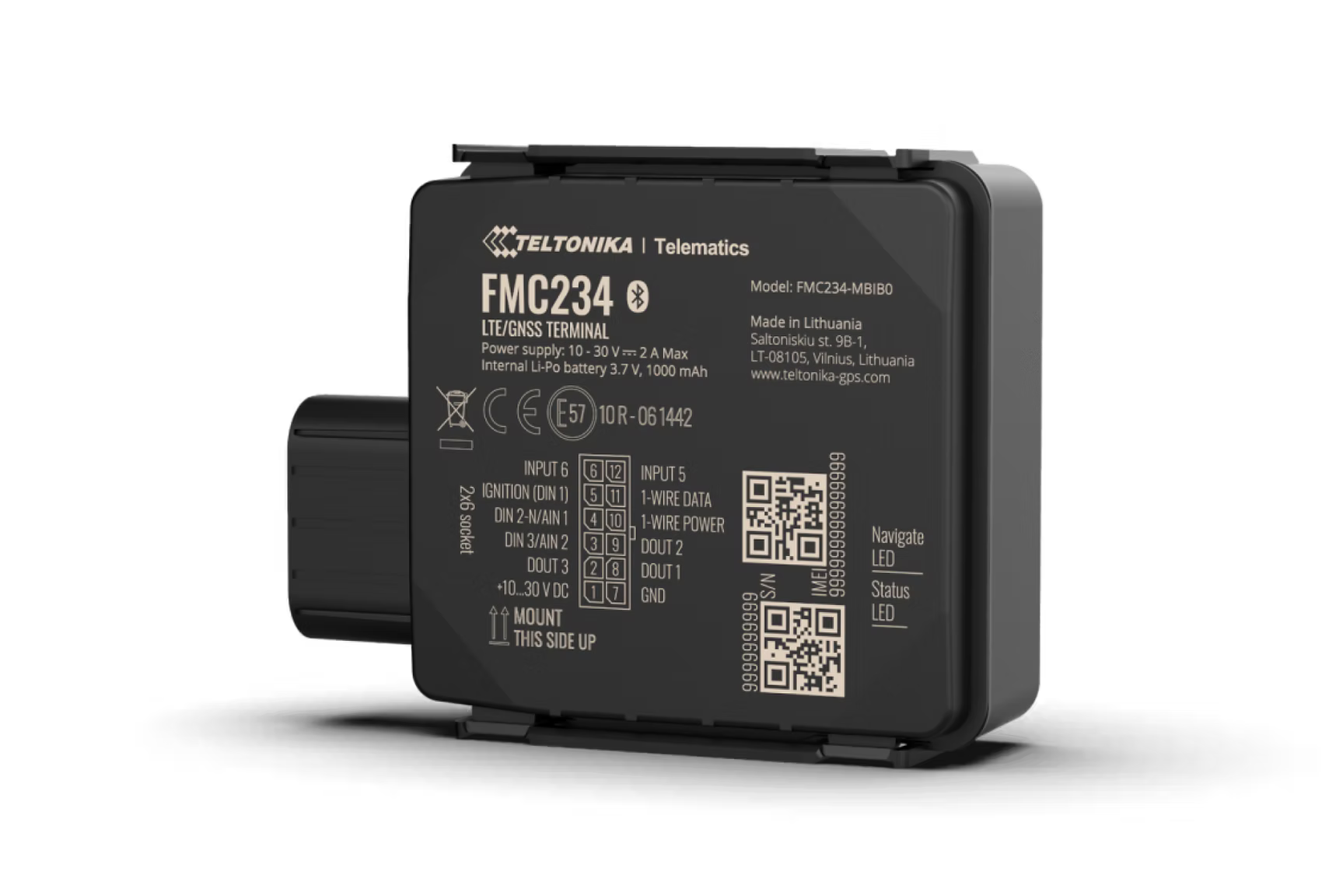

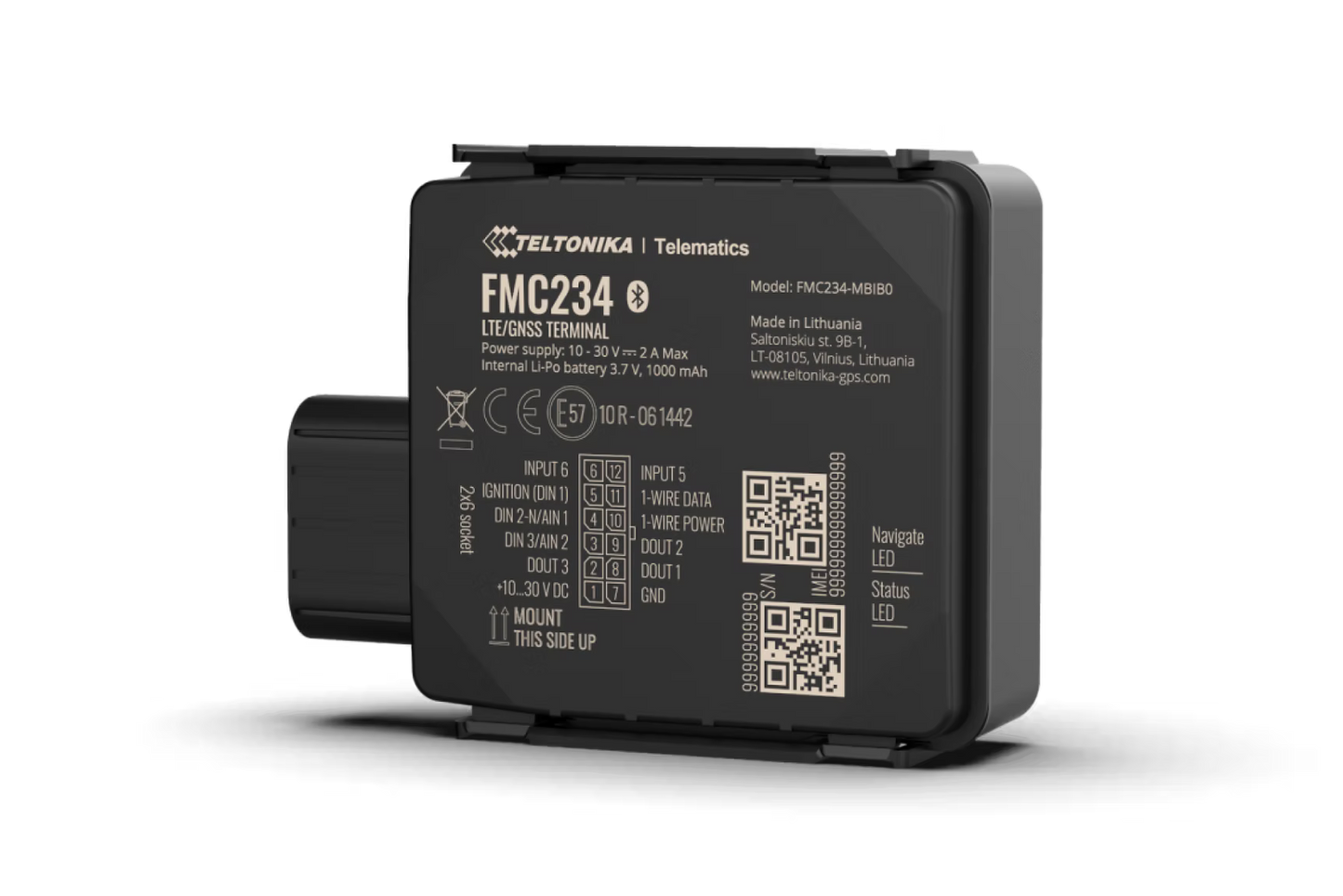

Teltonika FMC234 Water-Resistant Tracker With 4G LTE Connectivity

Most trackers go dark the moment someone cuts the power. The Teltonika FMC234 doesn't.

A 1000mAh backup battery and IP67-rated casing means it keeps tracking through power cuts, water exposure, and the kind of conditions that kill standard devices. Built for situations where reliability isn't optional.

What you get:

• 1000mAh backup battery that stays live long after external power is cut
• IP67 dust and waterproof protection
• Live 4G tracking with 2G fallback
• Remote engine immobilisation
• Fuel monitoring via impulse input
• Signal jamming detection that alerts you if someone tries to block the signal
• CAN adapter support for deeper vehicle data
• Bluetooth for temperature sensors, OBDII dongles, and BLE accessories
• Flexible I/O for door sensors, alarm buttons, seatbelt detection and more

Built for trailer tracking, insurance telematics, stolen vehicle recovery, and construction equipment.

Your Package Will Contain:

• 1 FMC234 tracker
• 1 input/output power supply cable (0.9m)

Product Specifications

• MODULE
  Name: MeiG SLM320-E with Teltonika TM2500 (MBIB0) / MeiG SLM320-LA with Teltonika TM2500 (MCIB0)
  Technology: LTE Cat 1 / 2G (GSM/GPRS) / GNSS / Bluetooth LE


• GNSS
  Systems: GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS
  Receiver channels: 33
  Position accuracy: <2.5 CEP
  Velocity accuracy: <0.1 m/s (within +/- 15% error)
  Tracking sensitivity: -165 dBm
  Hot start: <1 s | Warm start: <25 s | Cold start: <35 s


• CELLULAR
  Technology: LTE Cat 1, GSM
  4G bands (MBIB0): LTE FDD B1/B3/B7/B8/B20/B28, LTE TDD B38/B40/B41
  2G bands: GSM B2/B3/B5/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS (text/data)


• POWER
  Input voltage: 10–30V DC with overvoltage protection
  Backup battery: 1000mAh Li-Po rechargeable, 3.7V (3.7Wh)
  Internal fuse: 3A, 125V
  Power consumption: <3mA (Ultra Deep Sleep) / <33mA (nominal)


• PHYSICAL
  Dimensions: 70.5 x 67.0 x 25.6 mm (85.0 x 67.0 x 25.6 mm with connector)
  Weight: 91.8 g


• OPERATING ENVIRONMENT
  Operating temperature (without battery): -20°C to +85°C
  Operating temperature (with battery): -20°C to +60°C
  Storage temperature: -20°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP67
  Battery charge temperature: 0°C to +45°C
  Battery discharge temperature: -20°C to +60°C


• INTERFACE
  Digital inputs: 3
  Digital outputs: 3
  Negative input: 1 (DIN2)
  Impulse inputs: 2 (DIN1, DIN2)
  Analog inputs: 2
  CAN adapter input: 1
  1-Wire: 1
  USB: Micro-USB 2.0
  SIM: Micro-SIM or eSIM
  Memory: 128MB internal flash
  Bluetooth: 4.0 + LE
  LED indicators: 2


• FEATURES
  Sensors: Accelerometer
  Scenarios: Green driving, over-speeding, excessive idling, immobiliser, towing detection, crash detection, jamming detection, auto/manual geofence, trip, unplug detection
  Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
  Ignition detection: Digital Input 1, accelerometer, external power voltage, engine RPM (via CAN/OBDII)
  Configuration: FOTA Web, Teltonika Configurator (USB/Bluetooth), SMS, GPRS
  Time sync: GNSS, NITZ, NTP
  BLE peripherals: Temperature/humidity sensor, OBDII dongle, barcode scanner, universal BLE sensors


• CERTIFICATIONS
  CE RED, E-Mark, Pulse 5A, RoHS, IP67
