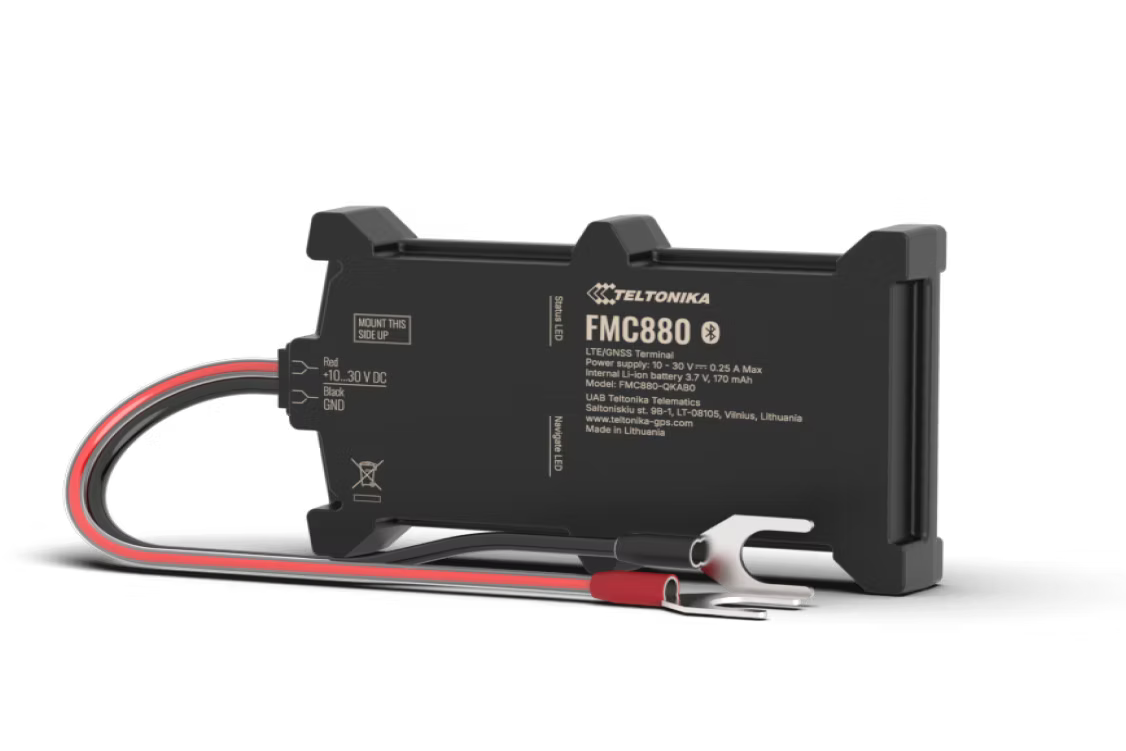

Teltonika FMC880 Battery-Mounted Tracker With 4G LTE Connectivity

The Teltonika FMC880 is built for operators who want to get vehicles live quickly. Just plug in and you're done. And when it is live, the dual-band GNSS puts your vehicle's position to within 1.5 metres.

What you get:

• Installs in minutes, no engineer needed
• Live 4G tracking with 2G fallback
• Dual-band GNSS (L1 + L5) with position accuracy under 1.5m
• IP65 waterproof, built for under-bonnet fitting
• Crash detection with automatic alerts
• Signal jamming detection
• Tamper-proof backup battery
• Operates in all conditions (-40°C to +85°C)

Built for light vehicles, motorbikes, courier delivery, insurance telematics, and rental and leasing fleets.

Your Package Will Contain:

• 1 FMC920 tracker
• 1 input/output power supply cable (0.4m)

Product Specifications

• MODULE
  Name: Quectel EG915U-EU with AG3335 (QJAB0) / Quectel EG915U-LA with AG3335 (QKAB0)
  Technology: LTE Cat 1 / GSM/GPRS / GNSS / Bluetooth


• GNSS
  Systems (L1): GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
  Systems (L5): GPS, Galileo, BeiDou
  Receiver: L1 — 75 channel | L5 — 60 channel
  Position accuracy: <1.5 m CEP
  Velocity accuracy: <0.1 m/s (within +/- 15% error)
  Tracking sensitivity: -165 dBm
  Hot start: <1 s | Warm start: <24 s | Cold start: <35 s


• CELLULAR
  Technology: LTE Cat 1, GSM
  4G bands (QJAB0): LTE FDD B1/B3/B5/B7/B8/B20/B28
  2G bands: GSM B2/B3/B5/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS (TEXT, PDU), TCP, UDP, TLS, EGTS, MQTT


• POWER
  Input voltage: 10–30V DC with overvoltage protection
  Backup battery: 170mAh Li-Ion, 3.7V
  Internal fuse: 3A, 125V


• PHYSICAL
  Dimensions: 92.5 x 57.6 x 14 mm
  Weight: 63 g


• OPERATING ENVIRONMENT
  Operating temperature (without battery): -40°C to +85°C
  Operating temperature (with battery): 0°C to +40°C
  Storage temperature: -40°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP65
  Battery charge temperature: 0°C to +45°C
  Battery discharge temperature: -20°C to +60°C


• INTERFACE
  USB: Micro-USB 2.0
  SIM: Micro-SIM
  Memory: 128MB internal flash
  Bluetooth: 4.0 + LE
  LED indicators: 2
  GNSS antenna: Internal High Gain
  GSM antenna: Internal High Gain


• FEATURES
  Sensors: Accelerometer
  Scenarios: Green driving, over-speeding, jamming detection, excessive idling, towing detection, crash detection, auto/manual geofence, trip, unplug detection
  Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  Ignition detection: Accelerometer, external power voltage
  Configuration: FOTA Web, Teltonika Configurator (USB/Bluetooth), SMS, GPRS
  Time sync: GNSS, NITZ, NTP
  BLE peripherals: Temperature/humidity sensor, OBDII dongle, barcode scanner, universal BLE sensors


• CERTIFICATIONS
  CE/RED, E-Mark, RCM, REACH, RoHS
