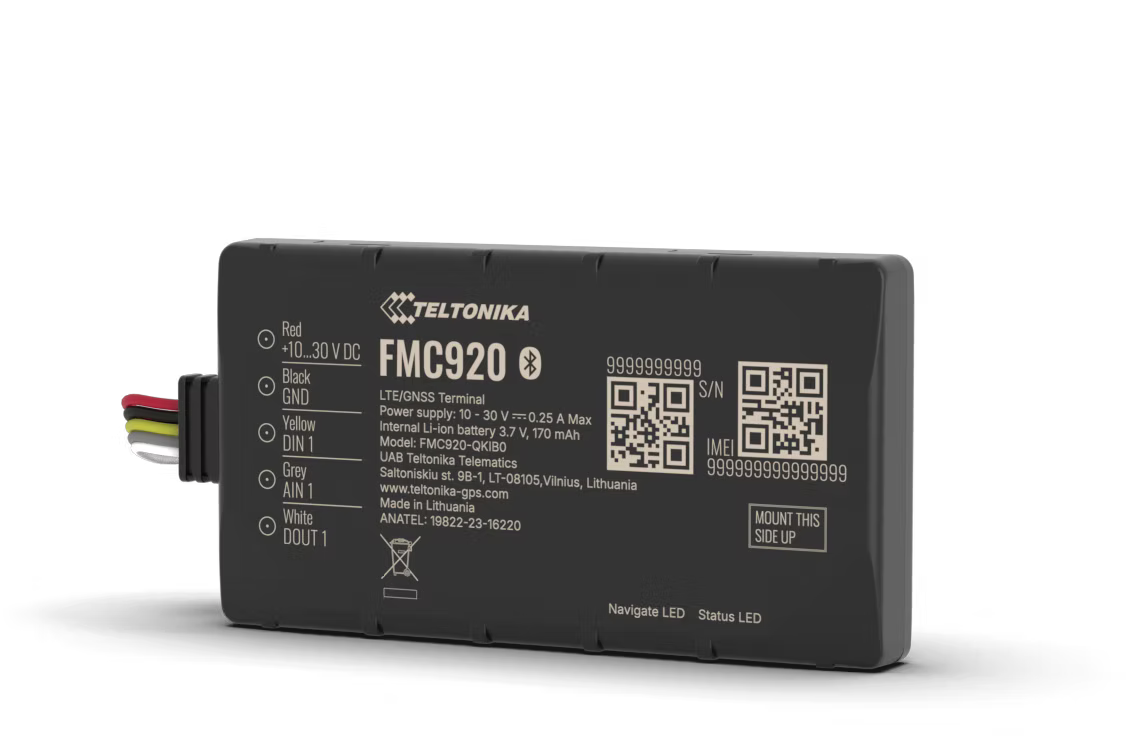

Teltonika FMC920 Compact Tracker With 4G LTE Connectivity

Small enough to hide. Tough enough to rely on.

The Teltonika FMC920 is built for vehicles where space is tight and visibility matters. It is hardwired in, out of sight, and tracks continuously without taking up room you don't have.

What you get:

• Live 4G tracking with 2G fallback
• Crash detection with automatic alert
• Remote engine immobilisation
• Tamper-proof backup battery
• Ignition, door, and alarm monitoring via digital input
• Analog input for temperature, humidity, and liquid level monitoring
• Operates in all conditions (-40°C to +85°C)

Built for light vehicles, motorbikes, insurance telematics, rental and leasing, and courier delivery fleets.

Your Package Will Contain:

• 1 FMC920 tracker
• 1 input/output power supply cable (0.7m)

Product Specifications

• MODULE
  Name: Quectel EG915U-EU with Teltonika TM2500 (QJIB0) / Quectel EG915U-LA with Teltonika TM2500 (QKIB0)
  Technology: LTE Cat 1 / GSM/GPRS / GNSS / Bluetooth LE


• GNSS
  Systems: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
  Receiver channels: 33
  Accuracy: <3 m
  Tracking sensitivity: -165 dBm
  Hot start: <1 s | Warm start: <25 s | Cold start: <35 s


• CELLULAR
  Technology: LTE Cat 1, GSM
  4G bands (QJIB0): LTE FDD B1/B3/B7/B8/B20/B28
  2G bands: GSM B2/B3/B5/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS (text/data)


• POWER
  Input voltage: 10–30V DC with overvoltage protection
  Backup battery: 170mAh Li-Ion (0.63Wh)
  Power consumption: <2mA (Ultra Deep Sleep) / <28mA (nominal)


• PHYSICAL
  Dimensions: 79 x 43 x 12 mm
  Weight: 54 g


• OPERATING ENVIRONMENT
  Operating temperature (without battery): -40°C to +85°C
  Operating temperature (with battery): -20°C to +40°C
  Storage temperature: -40°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP54
  Battery charge temperature: 0°C to +45°C
  Battery discharge temperature: -20°C to +60°C


• INTERFACE
  Digital inputs: 1
  Digital outputs: 1
  Analog inputs: 1
  USB: Micro-USB 2.0
  SIM: Micro-SIM
  Memory: 128MB internal flash
  Bluetooth: 4.0 + LE
  LED indicators: 2


• FEATURES
  Sensors: Accelerometer
  Scenarios: Green driving, over-speeding, excessive idling, towing detection, crash detection, auto/manual geofence, trip, unplug detection
  Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  Fuel monitoring: LLS (Analog), OBDII dongle
  Ignition detection: Digital Input 1, accelerometer, external power voltage, engine RPM (via OBDII)
  Configuration: FOTA Web, Teltonika Configurator (USB/Bluetooth), SMS, GPRS
  Time sync: GPS, NITZ, NTP
  BLE peripherals: EYE beacon and sensor, OBDII dongle, barcode scanner, universal BLE sensors


• CERTIFICATIONS
  CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI, SIRIM QAS
