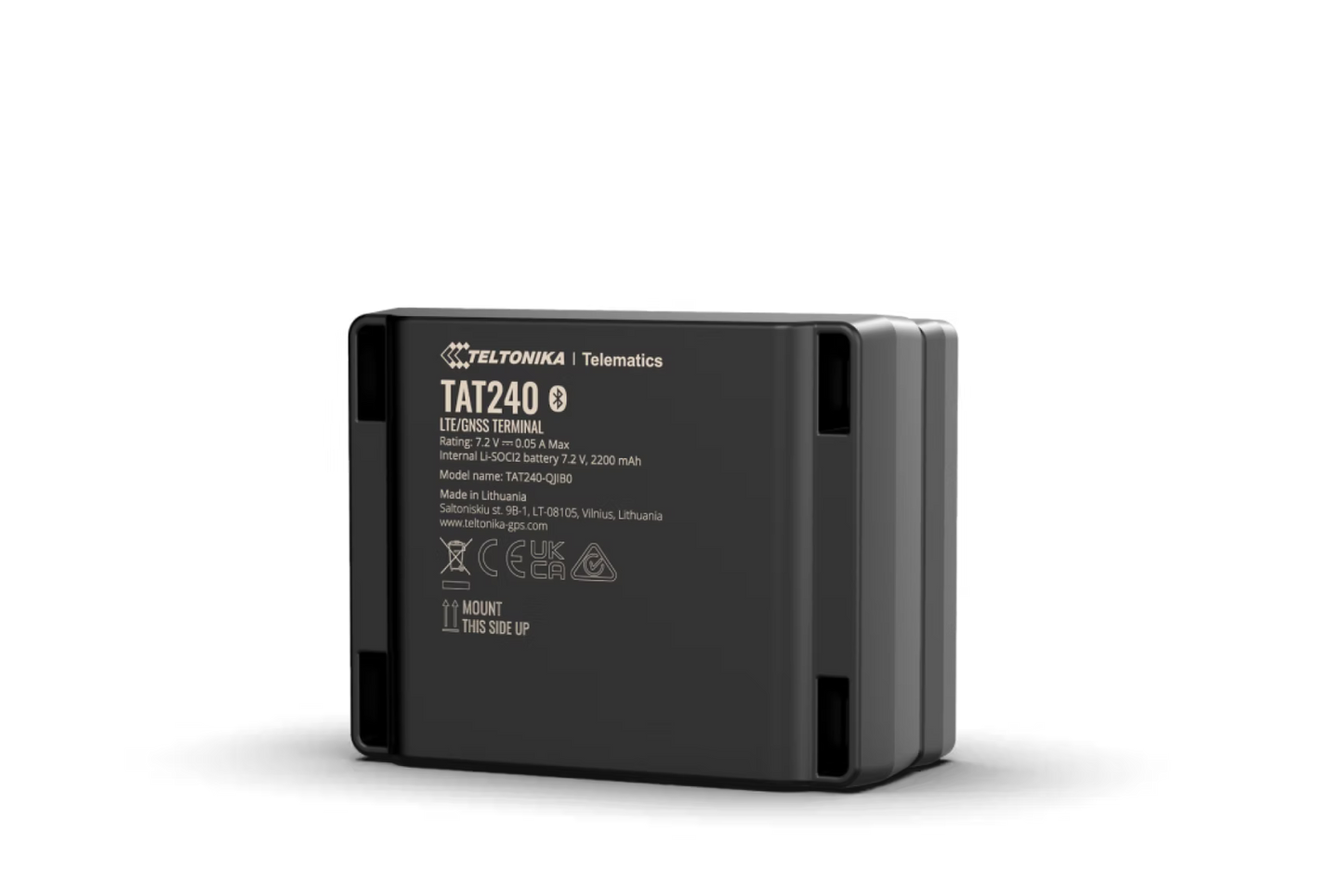

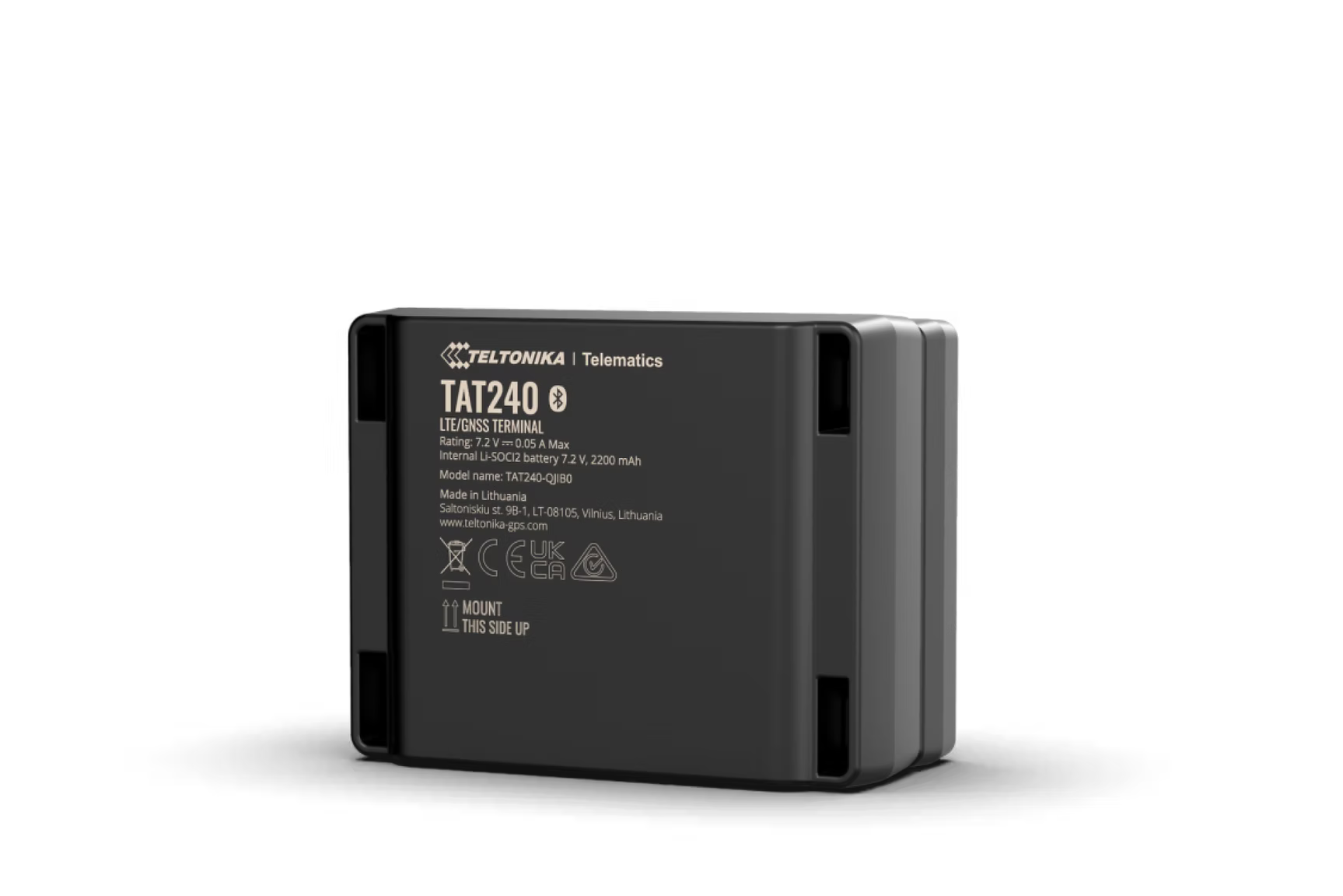

Teltonika TAT240 Magnetic GPS Tracker | Covert Tamper-Proof Asset Tracker | IP68 Waterproof | Trailer, Container & Equipment Security

The Teltonika TAT240 is a covert backup tracker that's magnetic, self-contained, and built to outlast long deployments without attention. If someone finds it and tries to remove it, you'll know immediately.

What you get:

• Magnetic mount that attaches to any metal surface in seconds, no tools
• Tamper detection with immediate alert
• IP68 dust and waterproof protection
• 4G LTE with 3G/2G fallback
• 2200mAh long-life battery
• Smart reporting that only transmits on movement or schedule, preserving battery life
• Operates in extreme conditions (-35°C to +75°C)

Ideal for trailer tracking, container security, rental equipment, construction assets, and vehicle double-security.

Your Package Will Contain:

• 1 TAT240 tracker
• Magnetic holder with tamper detection

Product Specifications

• MODULE
  Name: Quectel EG915U-EU with Teltonika TM2500
  Technology: LTE Cat 1 / 2G (GSM/GPRS) / GNSS / Bluetooth LE


• GNSS
  Systems: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
  Tracking channels: 33 | Acquisition channels: 99
  Position accuracy: <2.5 m CEP
  Tracking sensitivity: -165 dBm


• CELLULAR
  Technology: LTE Cat 1, GSM
  4G bands: LTE FDD B1/B3/B5/B7/B8/B20/B28
  2G bands: GSM B2/B3/B5/B8
  Data: LTE up to 10Mbps down / 5Mbps up
  Data support: SMS, TCP, UDP, TLS, EGTS, MQTT


• POWER
  Battery: 2200mAh, 2S Li-SOCl2, 7.2V — non-rechargeable, extremely low self-discharge
  No external power required


• PHYSICAL
  Dimensions: 78 x 63 x 28 mm
  Weight: 115 g (with battery)
  Magnetic holder dimensions: 77.5 x 61.5 x 27.5 mm
  Magnets: 4x Neodymium, 20x7mm, min. 11kg hold strength


• OPERATING ENVIRONMENT
  Operating temperature (with battery): -35°C to +75°C
  Storage temperature: -40°C to +85°C
  Humidity: 5% to 95% non-condensing
  IP rating: IP68
  Battery discharge temperature: -60°C to +85°C


• INTERFACE
  USB: Micro-USB 2.0
  SIM: Micro-SIM
  Memory: 128MB internal flash
  Bluetooth: 4.0 + LE
  LED indicators: 1
  GNSS antenna: Internal High Gain
  Cellular antenna: Internal High Gain


• FEATURES
  Sensors: Accelerometer
  Scenarios: Enhanced tamper detection, accelerometer wake-up, periodic tracking on stop/on move, weekly scheduler with time zones, backup tracking, static navigation, recovery mode, lost BLE sensor detection
  Sleep modes: Single custom sleep mode
  Configuration: FOTA Web, Teltonika Configurator (USB), SMS, GPRS
  Time sync: GNSS, NITZ, NTP
  BLE peripherals: EYE Sensors, EYE Beacons (recovery mode), universal BLE sensors


• CERTIFICATIONS
  CE/RED, E-Mark, RCM, UKCA
